KK rotary switches


Order Form for the planning of special switching programs for KK rotary switches (pdf file)

KK0, KK1, KK2 rotary switches
KK1-32-6008 KK1-32-6002-EXF2 KK0-20-3C19-E1F1
KKZ0-20-6008 KKL1-32-6002 KK0-2009022-C
KKV2-80-9022-T KKMV1-32-9022 KKML0-20-6002

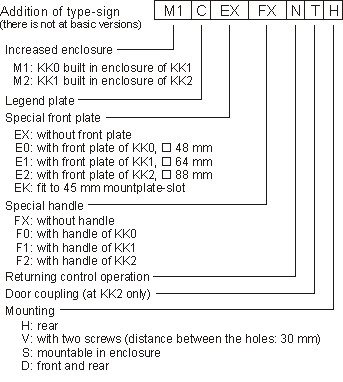

Example:
KKM0-20-6002on-off switch Ith = 20 A in enclosure
KKM1-32-6002-M2on-off switch Ith = 32 A in increased enclosure (KK1 switch in enclosure of KK2)
KKZ0-20-6006-Nlockable Ith = 20 A with returning control operation
KK1-32-6002-E2on-off switch Ith = 32 A with KK2 front plate
KKV2-80-9022-TIth = 80 A switch-disconnector with emergency stop function, with door coupling
KK0-20
Ith = 20 A
Ie = 20 A (AC-21)
Pe = 5,5 kW
(AC-3; 400 V) 		KK1-32
Ith = 32 A
Ie = 32 A (AC-21)
Pe = 11 kW
(AC-3; 400 V) 		KK2-40
Ith = 40 A
Ie = 40 A (AC-21)
Pe = 15 kW
(AC-3; 400 V) 		KK2-63
Ith = 63 A
Ie = 63 A (AC-21)
Pe = 22 kW
(AC-3; 400 V) 		KK2-80
Ith = 80 A
Ie = 80 A (AC-21)
Pe = 25 kW
(AC-3; 400 V) 		KK2-115
Ith = 115 A
Ie = 115 A (AC-21)
Pe = 37 kW
(AC-3; 400 V)


Technical data (by EN 60947) KK0-20 KK1-32 KK2-40 KK2-63 KK2-80 KK2-115
Rated insulation voltage Ui [V] 690 690 690 690 690 690
Switchable power Pe [kW]; (400V, AC-3) 5,5 11 15 22 25 37
Conventional free air thermal current [A]
Ith(=Ie,400 V, AC-1)		 16 32 40 63 80 115
Dimensions of front plate [mm] 48*48 64*64 88*88 88*88 88*88 88*88

Nimber of chambres max. KK0-20 KK1-32 KK2-40 KK2-63 KK2-80 KK2-115

free air

12

12

10

10

 10 5

in enclosure

4

4

4

4

 4 -

The detailed technical description of the product family is in the printed catalogue
"ROTARY SWITCHES"
