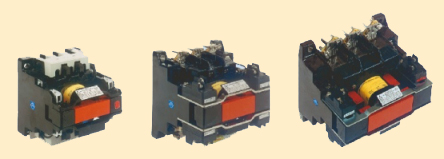

DIL universal contactors

DIL kapcsolók

Types
In the type-mark of the contactor-family the letters DIL relate to larger durability (life or endurance); the numbers after the letters refer to the type-size, the further numbers give the quantity of making and breaking auxiliary contacts. The letter "d" means auxiliary contacts with overlapped displacement.The letter "DC" indicate variant that is suitable for switching direct currents with main circuit, the letter "G" means control with DC-voltage coil.

The main and auxiliary current-paths of AC-voltage controlled contactors can equipped with cover which provides degree of protection IP 20.

  DIl 2v-22 DIL 2-22 DIL 3-22 DIL 4-22 DIL 6-22
Rated insulation voltage
Ui [V]		 690
Rated operational frequency [c/h] 50; 60 Hz and ...

Rated motor-power [kW](AC-3,400V)

22

30

45

75

110

Conventional free air/enclosed
thermal current
Ith / Ithe [A]

80/65

90/80

140/125

225/170

250/200
Degree of protection IP00
IP20
Relevant standards EN 60947-1
EN 60947-4-1

The detailed technical description of the product family is in the printed catalogue
" DIL UNIVERSAL CONTACTORS 592 KB"


 For further information see the GANZ KK
